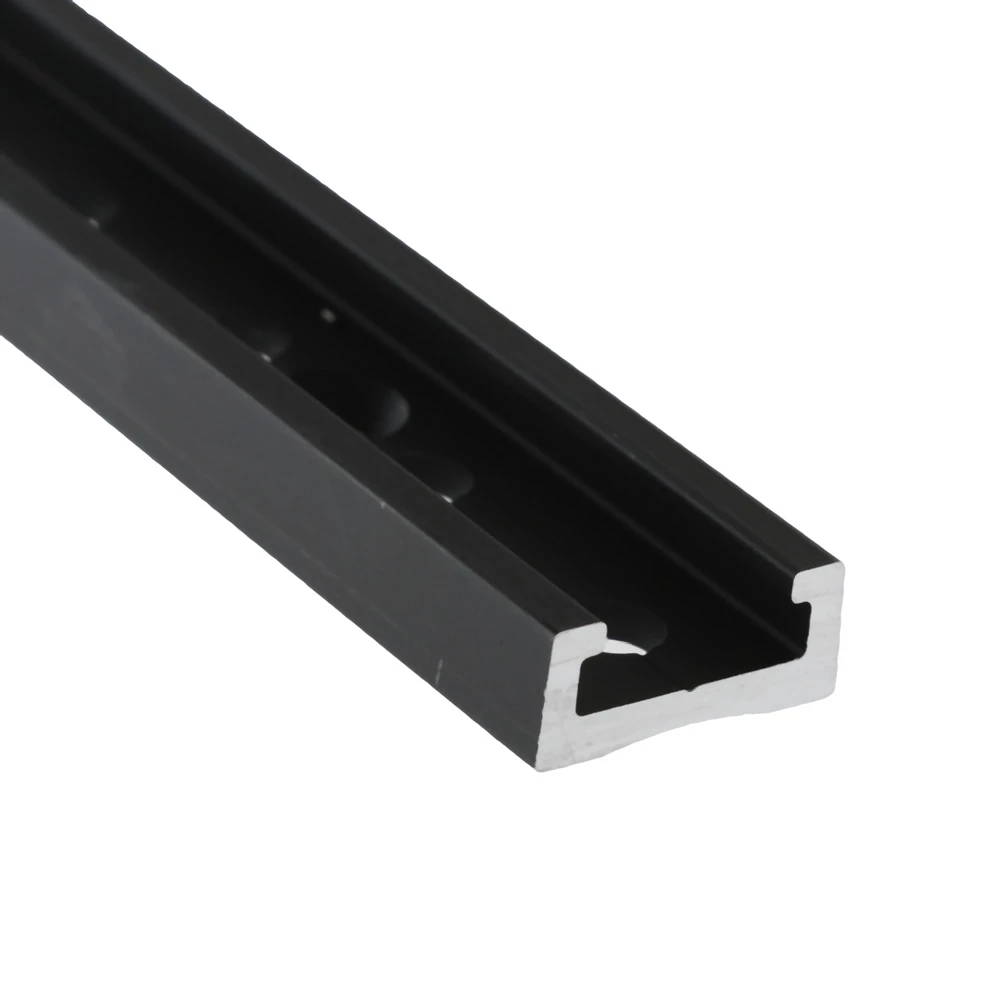

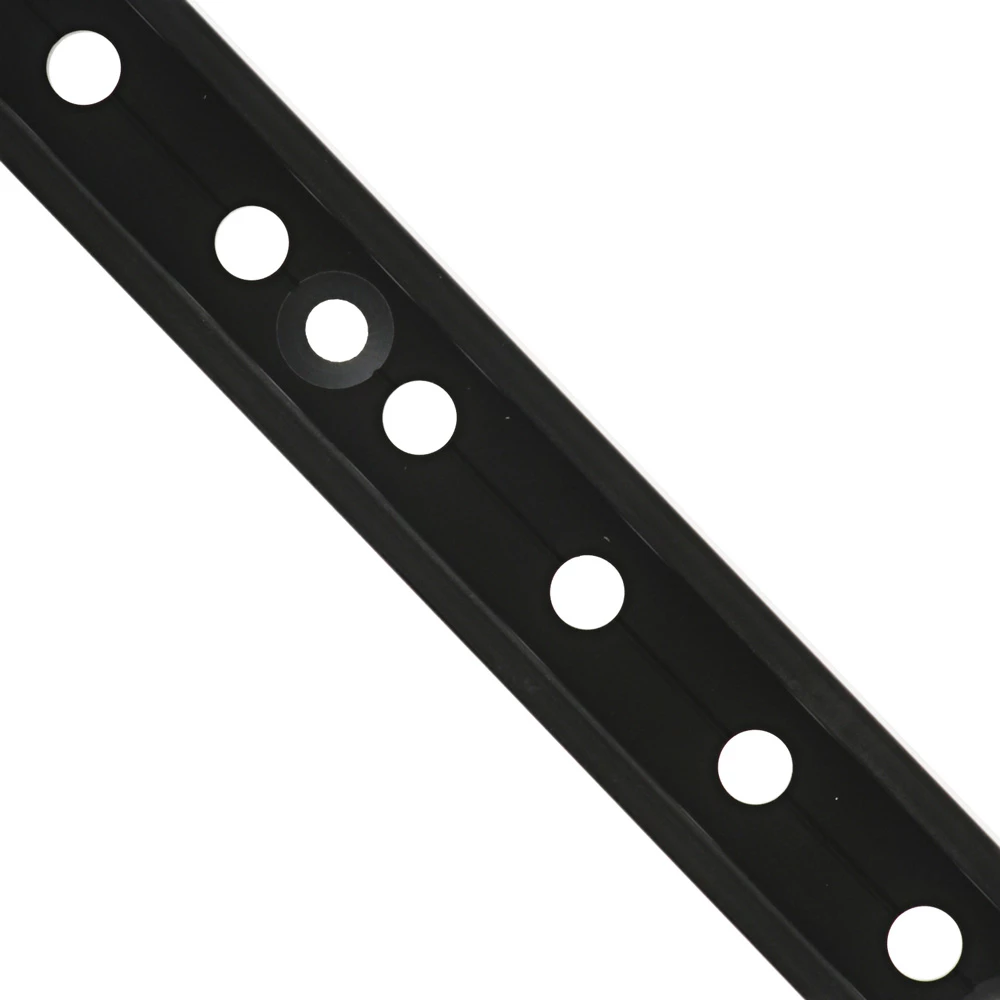

Ronstan S19 C-Track

Strong and low profile

The C-Track Series 19 Traveller System is an update of Ronstan’s
proven small boat track and slide systems. The Ronstan S19
C-Track is now made of black anodised aluminium instead of
stainless steel. This means it’s lighter but still provides
identical load capacities. The composite slides also have lower
friction when running in the track.

Ronstan S19 C-Track Features:

• Material: Black anodised aluminium
• Available in four lengths – 0.3m, 0.45m, 1.5m and 3m
• Strong and lightweight glass-reinforced nylon slides
• Grade 316 stainless steel fixtures
• Applications:
  Dinghy and small catamaran jib sheet leads
  Adjustable hiking strap systems
  Dinghy outhauls

Ronstan S19 C-Track Specifications:

Product Code	Track Fastenings	Stop Holes	Length (mm)	Length (in)	Width (External)	Width (Internal)	Height (Internal)	Weight
RC9190-0.3	4mm (5/32″) countersunk fasteners at 75mm (3″) centres	19mm (3/4″) centres	296mm	11 1/8″	19.75mm	15mm	3.5mm	64g
RC9190-0.45	4mm (5/32″) countersunk fasteners at 75mm (3″) centres	19mm (3/4″) centres	446mm	17 9/16″	19.75mm	15mm	3.5mm	96g
RC9190-1.5	4mm (5/32″) countersunk fasteners at 75mm (3″) centres	19mm (3/4″) centres	1496mm	58 7/8″	19.75mm	15mm	3.5mm	321g
RC9190-3.0	4mm (5/32″) countersunk fasteners at 75mm (3″) centres	19mm (3/4″) centres	2996mm	117 5/16″	19.75mm	15mm	3.5mm	643g

Note: Track end caps sold separately.
