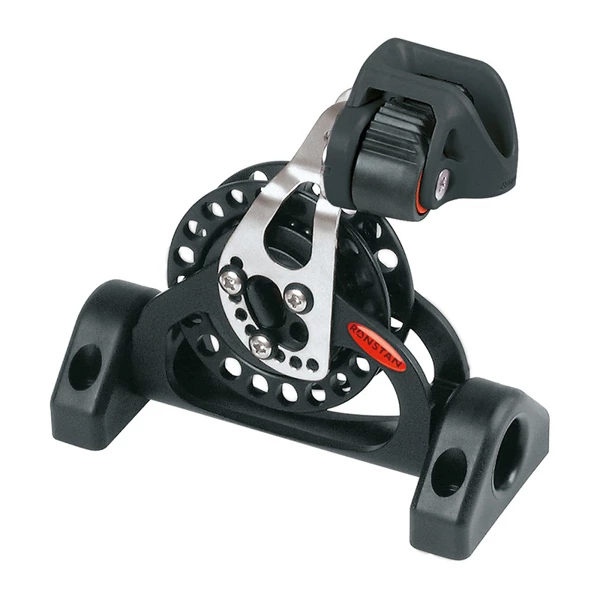

Ronstan RF72175 Series 75 Ratchet – Pivoting Low Lead Cleat

Lead blocks are a low profile solution for leading halyards or
other rig sail controls back to cleats or jammers.Maintains
alignment with a variable line entry-angle. The line passes through
the centre of the pivot support, remaining as close to the deck as
possible. The patented extruded hole design, in conjunction with
the groove profile of the sheave, provides a

Materials

• Alloy sheave
• Black carbon Acetal ball bearings
• Alloy cheeks
• Torlon rachet pawl

Specifications:

Sheave diameter	75 mm
Max. Rope diameter	12 mm
Max. Cable diameter	– mm
Fastener diameter	6.0 mm
M.W.L.	420 kg
B. L.	1370 kg
Weight	405 g
