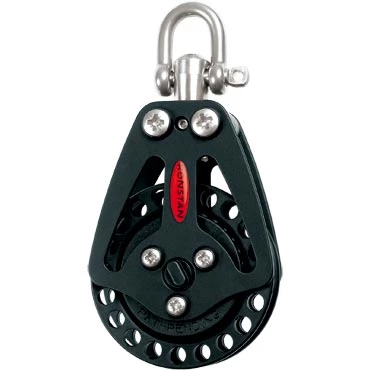

Ronstan RF72100 Series 75 Ratchet Single

The patented extruded hole design, in conjunction with the groove
profile of the sheave, provides a more powerful grip than
conventional designs – up to 20:1 holding power. Unrivalled low
weight is achieved by the use of a Torlon ratchet pawl, high grade
machined alloy sheave and black Acetal hubs and bearings. On-Off
switching knob is fitted to both sides of the swivel blocks (one
can be removed if desired). Ratchet blocks can be disassembled for
servicing or customisation.

Applications

• Mainsheet on powerful dinghies and skiffs
• Series 60 mainsheet systems on sportsboats using RF7 mainsheet
  swivel units
• Control line applications on larger yachts
• Spinnaker sheets on sportsboats and small keel boats (lateral
  lead blocks)

Materials

• Carbon black Acetal ball bearings
• Anodised aluminium sheave and cheek plates
• Torlon ratchet pawl
• Grade 316 stainless steel forged shackle

Features:

• Unrivalled 20:1 holding power
• Dual sided On-Off switch
• Ability to operate On/Off switch under load
• Low friction ball bearing system
• Lightweight
• Cheek cut-outs for easy bearing maintenance

Specifications:

Sheave diameter	75 mm
Max. Rope diameter	12 mm
Max. Cable diameter	– mm
Pin diameter	7.0 mm
M.W.L.	420 kg
B. L.	2000 kg
Weight	162 g
