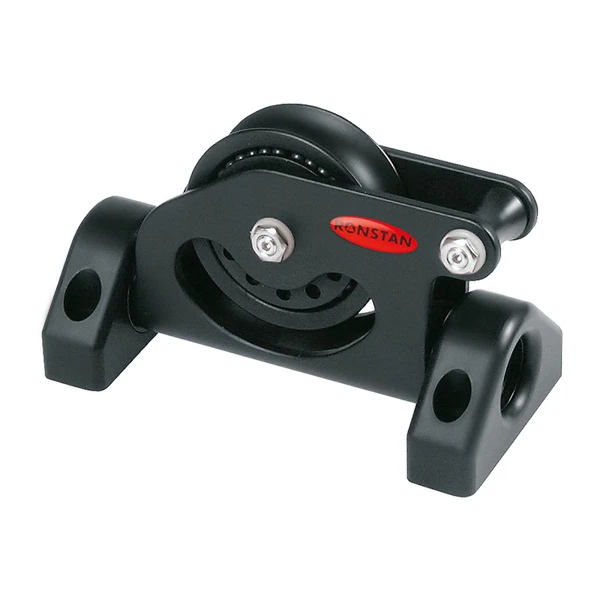

Ronstan RF68174 Series 60 RB Block – Pivoting Low Lead

Lead blocks are a low profile solution for leading halyards or
other rig sail controls back to cleats or jammers.Maintains
alignment with a variable line entry-angle. The line passes through
the centre of the pivot support, remaining as close to the deck as
possible. The self-contained alloy sheave packages provide
reliable, low-friction performance at high loads. T

Materials

• Alloy sheave and housing
• Torlon needle rollers
• Black carbon Acetal ball bearings

Specifications:

Sheave diameter	60 mm
Max. Rope diameter	14 mm
Max. Cable diameter	– mm
Fastener diameter	6.0 mm
M.W.L.	1500 kg
B. L.	3000 kg
Weight	341 g
