The trunnion swivel head of the Ronstan RF6511 Snap Shackle
Trunnion Small Bale 150mm allows both 360 degrees rotation
and side to side articulation.
Ronstan RF6511 Snap Shackle Trunnion Small Bale 150mm
Features:
- Heavy duty
- Quality, precision components
- Designed for easy clearance of lines and fittings
- Non-corrosive
- Secure
- High strength to weight ratio
- Materials:
- Grade 15-5PH investment cast stainless steel body and
hasp - Grade 316 stainless steel plunger pin and spring
- Grade 15-5PH investment cast stainless steel body and
Ronstan RF6511 Snap Shackle Trunnion Small Bale 150mm

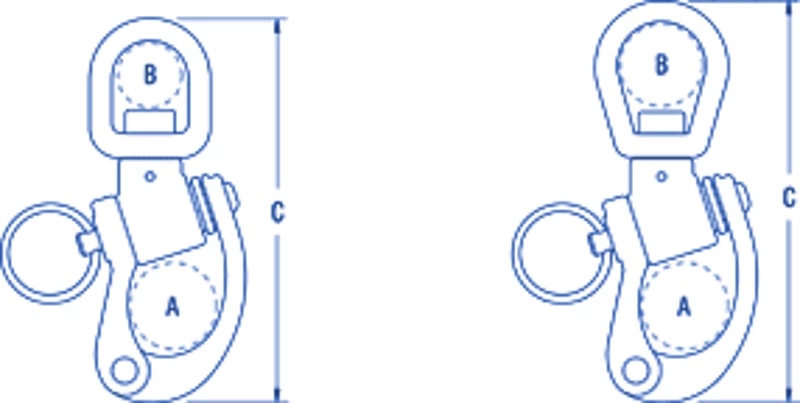

Specifications:
- A: 36.0 mm
- B: 22.0 mm
- C: 150.0 mm
- M.W.L.: 3750 kg
- B. L.: 7500 kg
- Weight: 454 g
