The trunnion swivel head of the Ronstan RF6111 Snap Shackle
Trunnion Small Bale 70mm allows both 360 degrees rotation
and side to side articulation.
Ronstan RF6111 Snap Shackle Trunnion Small Bale 70mm
Features:
- Heavy duty
- Quality, precision components
- Designed for easy clearance of lines and fittings
- Non-corrosive
- Secure
- High strength to weight ratio
- Materials:
- Grade 15-5PH investment cast stainless steel body and
hasp - Grade 316 stainless steel plunger pin and spring
- Grade 15-5PH investment cast stainless steel body and
Ronstan RF6111 Snap Shackle Trunnion Small Bale 70mm

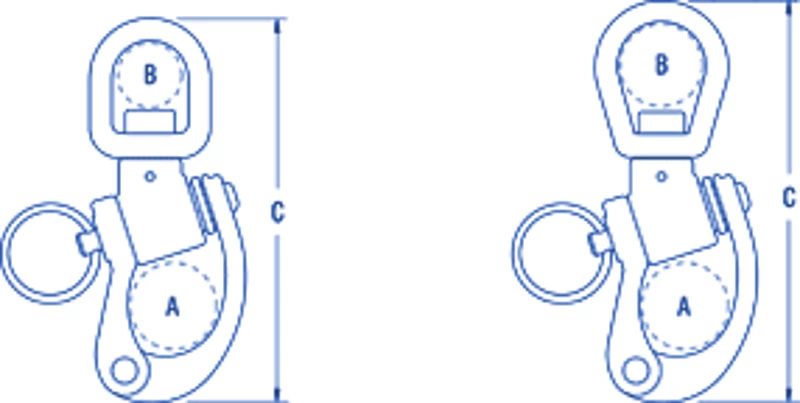

Specifications:
- A: 16.0 mm
- B: 10.0 mm
- C: 70.0 mm
- M.W.L.: 750 kg
- B. L.: 1500 kg
- Weight: 57 g
