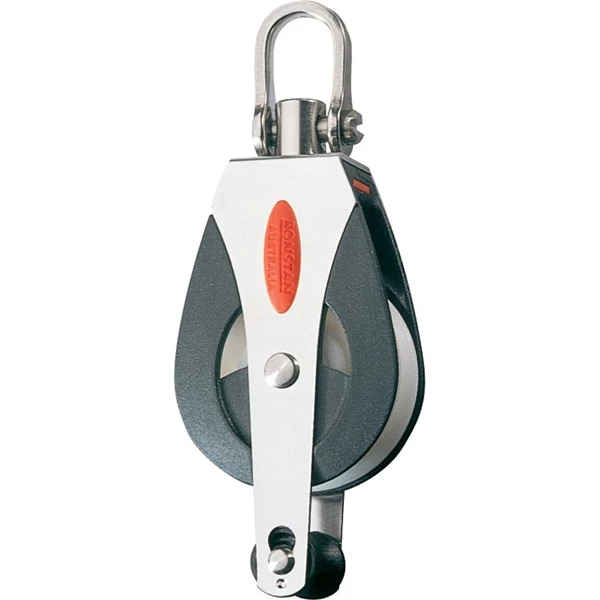

Ronstan RF41110 Series 40 All Purpose Block Single Becket

Great all around solution

The Ronstan RF41110 Series 40 All Purpose Block Single
Becket features a self-lubricating Acetal polymer sheave
running on polished stainless steel race to perform equally well
with dynamic loads and high static loads. For durability and a long
service life, these blocks are the right choice for sheets,
halyards and control line applications for cruising and racing. The
Captive Lock universal head can be fixed in either of two planes,
or free to swivel as required. And, the becket pin is removeable so
line can be spliced prior to fitting and is ingeniously locked into
position without the use of a clevis pin, split ring or tools.

Ronstan RF41110 Series 40 All Purpose Block Single Becket
Features:

• U.V. stabilised Acetal sheaves
• Impact and U.V. resistant, fibre reinforced Nylon
  cheeks
• Grade 316 stainless steel bearing race
• Grade 316 stainless steel load strap and head fitting
• Exceptionally high working loads
• Low maintenance, long service life
• Self-lubricating sheave
• Captive Lock universal head
• Slotted pin shackle eliminates fouled lines
• Snap fit removable becket pin
• Spare parts – RF150 Shackle, RF41010 Replacement Becket
  Pin
• Applications:
  • Mainsheet
  • Halyard
  • Vang
  • Spinnaker control lines on off-the-beach catamarans, one design
    classes and sportsboats up to 8m (26ft)

Ronstan RF41110 Series 40 All Purpose Block Single Becket
Specifications:

• Sheave diameter: 40 mm
• Max. Rope diameter: 10 mm
• Pin diameter: 5.0 mm
• M.W.L.: 400 kg
• B. L.: 1000 kg
• Weight: 80 g
