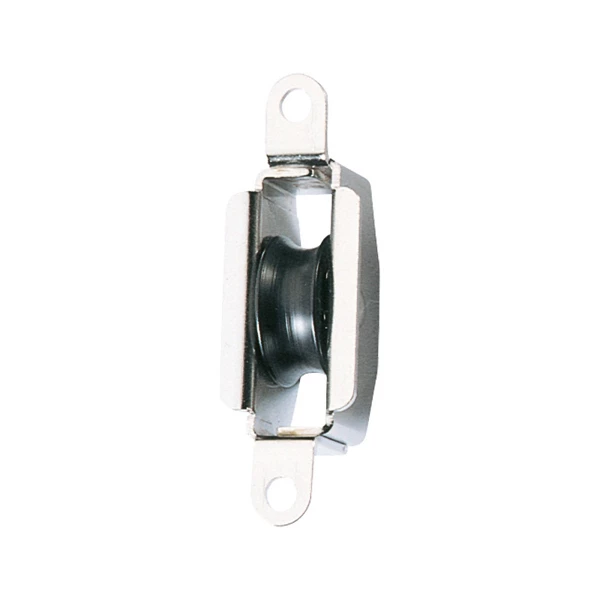

Ronstan RF20711AHL Series 20 High Load Block Single Exit Side Tabs

Ideal for high load applications

The Ronstan RF20711AHL Series 20 High Load Block Single
Exit Side Tabs is ideal for high load applications. Its
wear-resistant sheave material, in lightweight, self lubricating
polymer, is suitable for use with rope or wire.

Ronstan RF20711AHL Series 20 High Load Block Single Exit
Side Tabs Features:

• Durable construction
• Wear-resistant
• Lightweight
• Self lubricating polymer
• UV stabilised Acetal sheave
• Grade 316 stainless steel load strap and head fitting
• Exit blocks minimise friction in lines passing through the deck
  or exiting masts and booms

Ronstan RF20711AHL Series 20 High Load Block Single Exit
Side Tabs Specifications:

• Sheath diameter: 20 mm
• Max. Rope diameter: 6 mm
• Max. Cable diameter: 3 mm
• Fastener diameter: 4.0 mm
• M.W.L.: 275 kg
• B. L.: 1000 kg
• Weight: 22 g
