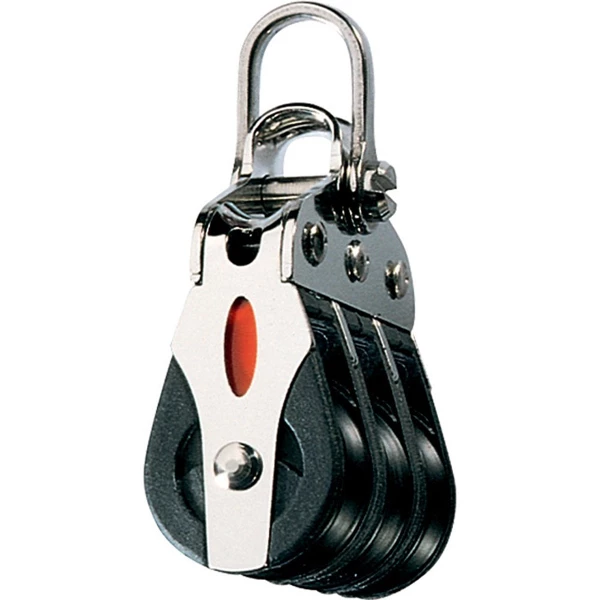

Ronstan RF20302 Series 20 Ball Bearing Block – Triple

High static and dynamic load capacity

The Ronstan RF20302 Series 20 Ball Bearing Block
features precision moulded Acetal sheaves running on stainless
steel ball bearings provide high performance and low friction. Its
two-way head can be fixed at 0 or 90 degrees.

Ronstan RF20302 Series 20 Ball Bearing Block
Features:

• Durable construction
• Low friction
• High static and dynamic load capacity
• Lightweight
• Low profile swivelling hook for quick and easy
  attachment
• Hook suits rope, stainless steel and webbing fixing
  points
• Stainless steel ball bearings
• UV stabilised Acetal sheave
• Grade 316 stainless steel load strap and head fitting
• Impact and UV resistant, fibre reinforced Nylon cheeks
• Applications:
  • Dinghy control lines
  • Dinghy vangs
  • Cunninghams
  • Traveller controls

Ronstan RF20302 Series 20 Ball Bearing Block
Specifications:

• Sheath diameter: 20 mm
• Max. Rope diameter: 6 mm
• Pin diameter: 4.0 mm
• M.W.L.: 400 kg
• B. L.: 850 kg
• Weight: 62 g
