Ronstan RF1532M0606 Open Body Turnbuckle Toggle/Swage 6mm Wire 3/8inch Thread

Rigging products for swaging have product numbers that are coded to
indicate certain dimensions of the product. The first four digits
identify the product type. The first two digits of the suffix
identify the wire size expressed in 1/32′ and the last two digits
denote the thread size expressed in 1/16′.Open Body Turnbuckles are
made from polished chrome plated high grade brass bodies with grade
316 stainless steel end fittings. This combination of materials not
only avoids the risk of excessive thread wear or seizure under
load, but also provides the considerable advantage of easier
adjustment.
As shown on the accompanying graph, for a given level of torque, up
to 47% more tension can be achieved with the Ronstan brass body
turnbuckle than with competitors bronze body turnbuckles, or up to
71% more than an equivalent stainless steel body turnbuckle.
Conversely, for a given required rig tension the torque required to
adjust a competitors bronze or stainless steel body turnbuckle is
up to 40% or 75% more respectively than that of the Ronstan brass
body turnbuckle.
After tensioning, cross-drilled ends in the threaded terminals
enable the use of split-pins to lock and secure the adjustment. For
easy thread identification an etched R identifies the right-hand
threaded end of the body.
As with all Ronstan turnbuckles, toggles are designed with full
universal movement for easy installation and connection and allow
the assembled cable to move where the structure is subject to wind
loads or vibration.

Applications

• Range offers large adjustment to metric wire rigged boats from
  dinghies through to keelboats

Materials

• Grade 316 stainless steel end fittings
• Chrome plated high grade brass bodies

Features:

• Dissimilar metals
• Open design
• Fine, rolled threads
• Multi axial toggles

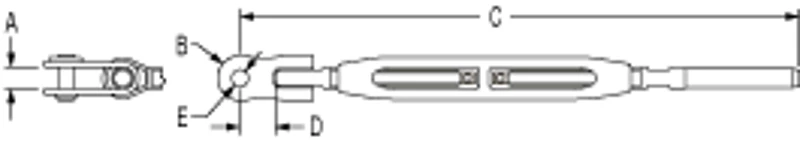

Specifications:

Cable diameter	6 mm
Thread	3/8′ UNF
A	10.0 mm
B	14.4 mm
C Max	373.0 mm
C Min	285.0 mm
D	23.0 mm
E	9.4 mm
B. L.	3350 kg
Weight	453 g
