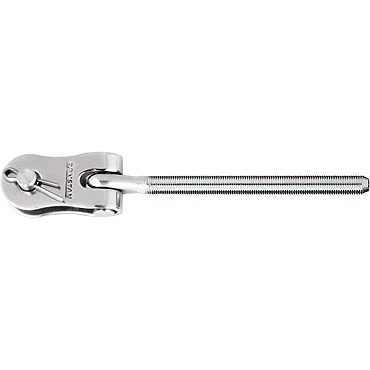

Ronstan RF15040505 Type 10 Threaded Toggle End 5/16in

Maximum strength and reliability

The Ronstan RF15040505 Type 10 Threaded Toggle End
5/16in rigging fittings have rolled external threads for
maximum strength and reliability – unlike cut threads, the
stainless steel bar is formed up and down to create a thread with
the grain remaining unbroken and flowing the full length of the
thread. Threads are UNF (Unified National Fine), short pitch
threads for fine adjustment and reduced adjustment effort.

Compatible with Type 10 turnbuckles
Type 10 closed body turnbuckles have a sleek, modern profile with
no sharp edges. They are easily adjusted by turning the unique
adjustment nut, which is free to rotate within the sleeve on the
turnbuckle body, and are secured with a quick turn on the locking
nut. A sight hole is provided in the body to verify adequate thread
engagement. With fine thread and single end adjustment, Type 10
turnbuckles are much easier to adjust than conventional
turnbuckles, and the use of dissimilar but compatible metals for
the threaded components avoids the risk of thread seizure.

Ronstan RF15040505 Type 10 Threaded Toggle End 5/16in
Features:

• Threads are UNF (Unified National Fine), short pitch threads
  for fine adjustment and reduced adjustment effort
• Toggle end is designed with full lateral articulation for easy
  installation and connection compatibility
• Compatible with Type 10 turnbuckles
• Breaking load of 2360kg (5190lb)

Ronstan RF15040505 Type 10 Threaded Toggle End 5/16in
Specifications:

• Product code: RF1504-0505
• Thread: 5/16
• A: 9.4 mm
• B: 11.2 mm
• C: 131.0 mm
• D: 89.0 mm
• E: 20.7 mm
• F: 7.9 mm
• B. L.: 2360 kg
• Weight: 88 g
