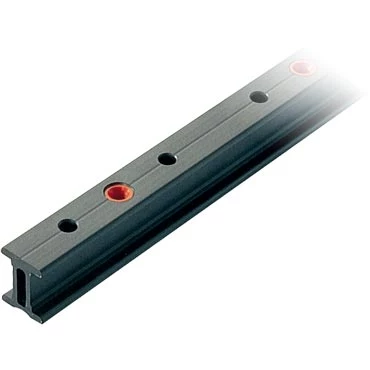

Ronstan RC6190-6.0 Series 19 I-Beam Track Black 5996mm

The Ronstan RC6190-6.0 Series 19 I-Beam Track Black
5996mm is suitable for mainsheet and self-tacking jib
travellers on dinghies and catamarans; and mainsheet systems on
boats up to 9m (28ft).

Ronstan RC6190-6.0 Series 19 I-Beam Track Black 5996mm
Features:

• Durable anodised aluminium alloy construction
• Track fastenings: 5mm (3/16″), countersunk head fasteners at
  100mm (3.937″) centres
• Stopholes at 50mm (1.969″) centres
• Track is supplied with RC7250-INS insulating inserts to
  eliminate corrosion between track and fasteners

Ronstan RC6190-1.0 Series 19 I-Beam Track Black 996mm
Specifications:

• Colour: Black
• Length: 5996 mm
• Width: 19.0 mm
• Weight: 4960 g
• Minimum Curve Radium:
  • For 51mm (2″) car. Min horizontal ‘A’ curve radius = 400mm (15
    3/4″). Min horizontal ‘B’ curve radius = 400mm (15 3/4″).
  • For 86mm (3 3/8″) car. Min horizontal ‘A’ curve radius = 1200mm
    (47 1/4″). Min horizontal ‘B’ curve radius = not suitable.
  • For 105mm (4 3/16″) car. Min horizontal ‘A’ curve radius =
    400mm (15 3/4″). Min horizontal ‘B’ curve radius = not
    suitable.
