Ronstan RC43069 Series 30 Captive Ball Batten Car Quick Release 119mm X 58mm

The Ronstan RC43069 Series 30 Captive Ball Batten Car Quick
Release 119mm x 58mm runs on twin races of captive Torlon
ball bearings and captive slide rods, for easy loading and
unloading from mast track. It runs on standard Series 30 track and
can be used in conjunction with standard Series 30 batten
systems.

Ronstan RC43069 Series 30 Captive Ball Batten Car Quick
Release 119mm x 58mm Features:

• Suits Series 30 track
• Minimum distance from mast to mainsail luff enhance
  efficiency
• Captive
• Low profile
• Lightweight alloy car bodies
• Torlon ball bearings
• Acetal sliderods
• Quick-Release batten receptacle cars and links are standard, to
  allow quick and easy removal of the mainsail for changeover, repair
  or stowage
• Stainless steel ball joint links provide movement in all
  directions and up to 105 degrees either side of centre

Ronstan RC43069 Series 30 Captive Ball Batten Car Quick

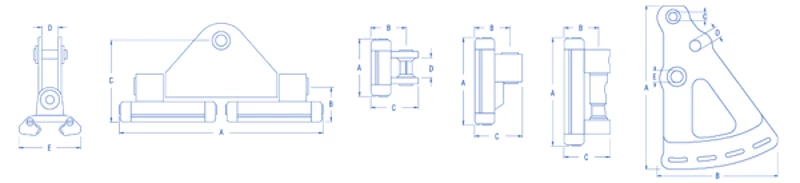

Release 119mm x 58mm Specifications:

• A: 119.0 mm
• B: 43.0 mm
• C: 56.0 mm
• E: 58.0 mm
• Weight: 525 g
• Applications:
  • Monohulls to 23m (75ft) or sail area 120 m2 (1292 ft2)
  • Multihulls to 17m (56ft) or sail area 93 m2 (1001 ft2)
