Ronstan RC1190-1.0 Series 19 Track Black 996mm M5 CSK FH

The Ronstan RC1190-1.0 Series 19 Track Black 996mm M5 CSK
FH is suitable for dinghy and catamaran mainsheet
traveller and jib lead sheeting systems, and mainsheet systems on
sportsboats and keel boats to 7m (23ft).

Ronstan RC1190-1.0 Series 19 Track Black 996mm M5 CSK FH
Specifications:

• Material: Alloy
• Track Fastenings: 5mm (3/16″), countersunk head fasteners at
  100mm (3.937″) centres
• Stopholes at 50mm (1.969″) centres
• Length: 996 mm

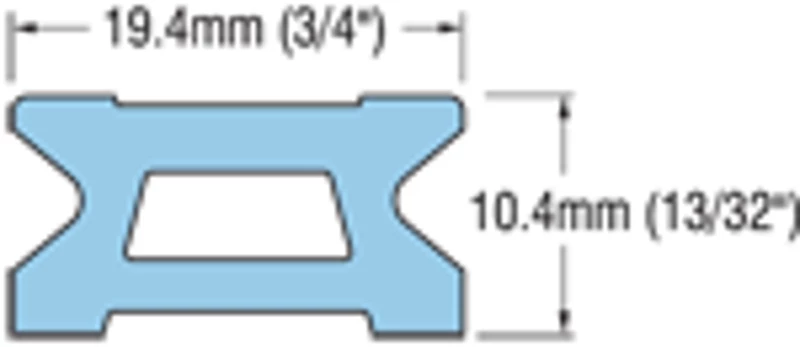

• Width: 19.0 mm
• Weight: 310 g
• Minimum Curve Radium:
  • For 50mm (1 31/32″) car. Min horizontal ‘A’ curve radius =
    1500mm (59″). Min horizontal ‘B’ curve radius = 1500mm
    (59″).
  • For 57mm (2 1/4″) car. Min horizontal ‘A’ curve radius = 1500mm
    (59″). Min horizontal ‘B’ curve radius = 1500mm (59″).
  • For 70mm (2 3/4″) car. Min horizontal ‘A’ curve radius = 2500mm
    (99″). Min horizontal ‘B’ curve radius = 3000mm (118″).
  • For 85mm (3 11/32″) car. Min horizontal ‘A’ curve radius =
    3500mm (138″). Min horizontal ‘B’ curve radius = 4500mm
    (177″).
  • For 100mm (3 15/16″) car. Min horizontal ‘A’ curve radius =
    5000mm (197″). Min horizontal ‘B’ curve radius = 5500mm
    (217″).
  • For 148mm (5 27/32″) car. Min horizontal ‘A’ curve radius =
    11000mm (433″). Min horizontal ‘B’ curve radius = 15000mm (591″).
    Standard low profile track has stop holes to accept cars with
    plunger stops.
