Ronstan Padeye Removable Certified 4 CSK M6 Holes 9mm Bar

The Removable Screw-In Padeye Anchor Device consists of two parts:
A structural anchor base which is permanently fixed to the structure.
A screw-in anchor for connection of personal protection equipment.

The structural anchor base is to be permanently fastened to the structure using 4 x M6 fasteners.The screw-in anchor is attached to the structural anchor base by means of a central threaded spigot. Once fully threaded in place the anti-rotation locking screw must be engaged to ensure that the anchor cannot unintentionally become detached from the structural anchor base.The screw-in anchor has a single attachment point for personal protection equipment.

Features:

• Ronstan Fall Arrest Systems provide a method of attachment for use in conjunction with personal protection equipment to protect against falls from a height, such as when working outside of conventional guardrails for cleaning and maintenance purposes on motor yachts or other vessels. They should not be used for any other purpose.

Features:

• Certified to European Standard EN795:2012 Type A and Australian Standards AS1891.4:2009 and AS5532:2013.
• Screw-in lanyard attachment device can be removed from the base when not in use.
• Separate locking screw ensures that the screw-in lanyard attachment remains secure when in use.
• A threaded plug remains in the base when the screw-in anchor device is removed to prevent dirt and grit from entering the threads.
• Grade 316 stainless steel throughout for maximum corrosion resistance and longevity.

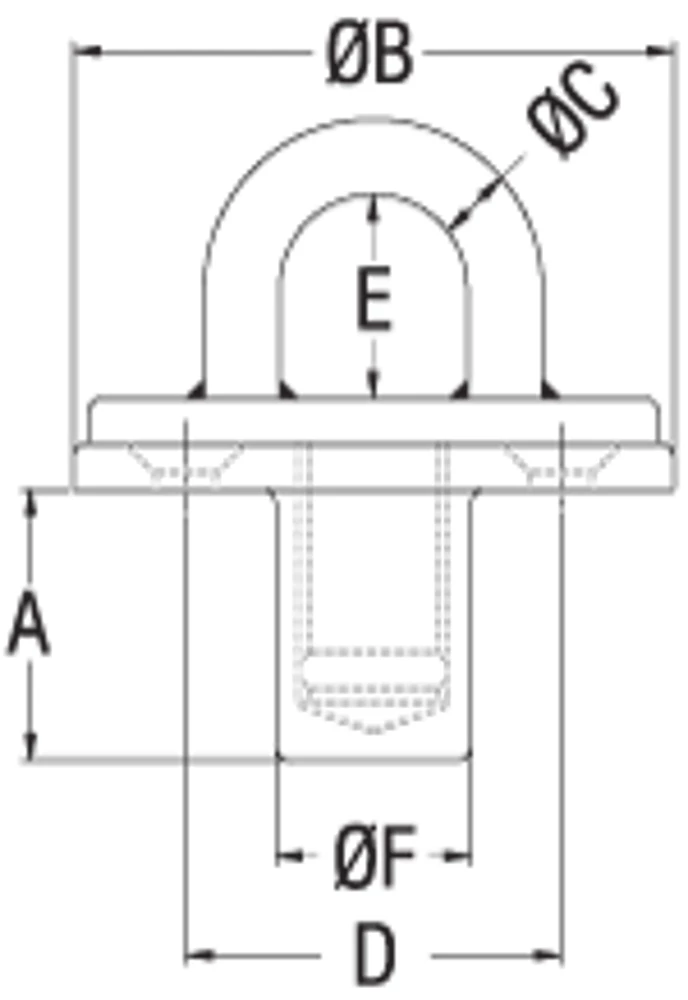

Specifications:

Thread	M16
A	29.0 mm
B	70.0 mm
C	9.0 mm
D	26.9 mm
E	14.0 mm
F	23.0 mm
B. L.	– kg
Weight	303 g
